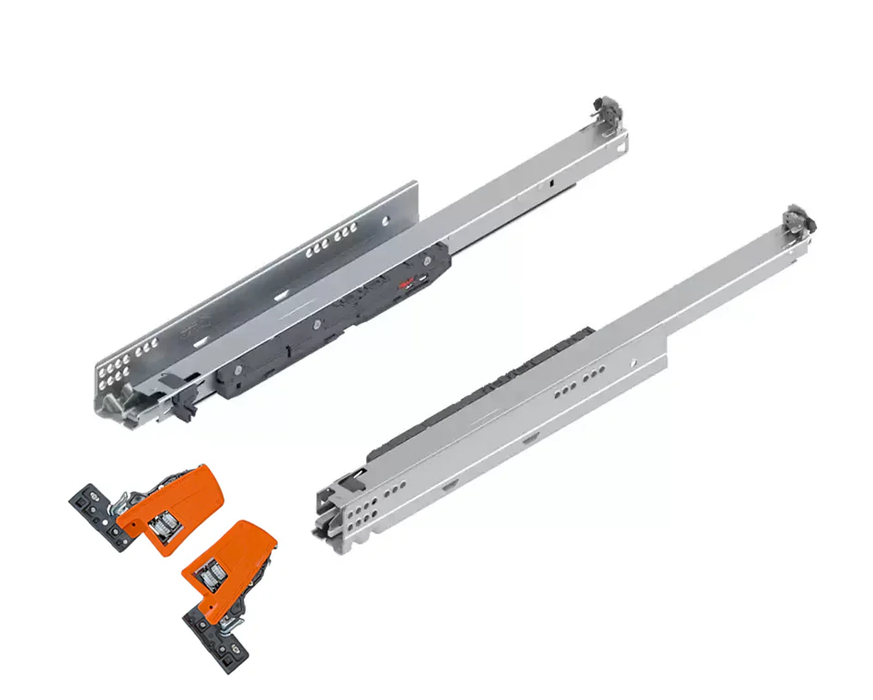

Blum - Movento Drawer Slides

Blum - Movento Drawer Slides

Premium undermount slides with ultra-smooth motion and full adjustability - engineered for precision, performance, and high-end cabinetry.

Mounting Style: Undermount
Extension Type: Full Extension
Closing Mechanism: Soft Close
Load Capacity: 88 lbs

Option: 350mm (14")
$62.50 - $67.50
$62.50
$62.50 - $67.50
$62.50

Full Extension Soft-Close Undermount Blumotion Slides 760H

760H Series

BLUM MOVENTO 760 series is a 40kg class option with soft close and full extension. This slide offers tool-free tilt adjustment, height adjustment, and side-to-side adjustment for easy alignment!

Includes Left and Right Standard Locking Device with Side Adjustment.

  • Full extension concealed runners with BLUMOTION soft close
  • Zinc-coated steel
  • Concealed roller carriage with permanently lubricated synthetic rollers
  • Designed for maximum 12mm & 15mm (1/2" & 5/8") drawer material thickness

European screws can be found here

Technical Data
  • Mounting Style: Undermount
  • Product Finish: Zinc
  • Extension: Full Extension
  • Closing Type: Soft Close
  • Load Rating: 40kg
  • Application: Frame or Frameless
  • Max. Drawer Box Thickness: 16mm
  • Material: Steel
  • Weight: 3kg (6.6lb)
Options

350mm (14") Slides

  • 760H3500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

400mm (16") Slides

  • 760H4000S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

450mm (18") Slides

  • 760H4500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

500mm (20") Slides

  • 760H5000S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

550mm (22") Slides

  • 760H5500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device
Movento Soft Close Drawer Slide

Experience smooth, silent closures with Blum Movento Soft-Close Technology

Soft-close feature uses a dampening system that gently slows the drawer as it closes, ensuring a smooth, quiet, and controlled closure while maintaining precise alignment and stability for enhanced performance and longevity.

Movento Drilling Pattern Install

Assembly stays the same

The MOVENTO runner system gives you an extensive range of options, and yet assembly is always the same. Regardless of whether you combine the runner with BLUMOTION, SERVO-DRIVE, TIP-ON BLUMOTION, TIP-ON or a side stabiliser, the drilling pattern and fixing positions of the runner remain the same.

Movento Tip-On Locking

4 dimensions for greater precision

With MOVENTO, you can adjust the height, tilt and depth of the front and also modify it at the sides. There is no need to alter the drawer and you get a precise gap layout quickly, easily and without tools.

Tandem Install Guide
EASY ASSEMBLY AND INSTALLATION - The runner system gives you an extensive range of options, and yet assembly is always the same.
CLICK FOR INSTALLATION INSTRUCTIONS

Frequently Asked Questions about Blum Movento Drawer Slides

What is Blum Movento?

Blum Movento is a high-quality, full-extension, soft-close drawer slide system. It offers smooth and silent operation while providing excellent stability and easy installation. The slides are designed for use with wooden drawers and are known for their durability, precision, and ease of use.

How does the soft-close feature work on Blum Movento slides?

The soft-close feature in Blum Movento slides is powered by a hydraulic damping system built into the slides. This system automatically slows down the drawer as it closes, ensuring a smooth and quiet closing motion. It also helps prevent slamming and protects both the drawer and the cabinet.

What weight capacity do Blum Movento slides support?

Blum Movento drawer slides typically support a weight capacity of up to 60 kg (132 lbs) per pair, depending on the specific model and installation type. This makes them suitable for a wide range of residential and commercial applications.

Can Blum Movento slides be adjusted after installation?

Yes, Blum Movento slides offer post-installation adjustments for both height and side alignment. This allows you to fine-tune the position of the drawer to ensure it fits perfectly within the cabinet, even after the slides have been installed.

Are Blum Movento slides compatible with any drawer design?

Blum Movento slides are designed to work with wooden drawers, but they require precise installation to ensure smooth operation. The system is compatible with standard drawer constructions, as long as the dimensions and installation guidelines are followed. It is important to choose the correct size and configuration to match the specific needs of your drawer system.

Blum Movento side profile

Synchronised feather-light glide for more peace and quiet

The synchronised feather-light glide is a special feature of the MOVENTO runner system. The runner components run smoothly and silently – for soft and effortless opening and closing. Low-friction cylindrical nylon rollers ensure an optimal weight distribution.

Movento with Blumotion slide

Innovative technology for greater quality of motion

You will appreciate the enhanced ease of use of MOVENTO; when the drawer is opened, the runner profile immediately transitions to the feather-light glide. And thanks to the BLUMOTION soft-close mechanism, it closes again just as softly and effortlessly – even when heavy pull-outs receive a forceful push.

Movento Slide Drawer

High stability for greater load bearing capacity

MOVENTO boasts excellent stability and a high load bearing capacity. Thanks to its superb sag values, the runner system is ideal for applications near to the floor, too. This makes the full extension with 40 kg and 70 kg load bearing classes the first choice for all living areas, even when you are using wide, high and deep pull-outs.

Blum Tandem Drawer Cabinet
Description

Full Extension Soft-Close Undermount Blumotion Slides 760H

760H Series

BLUM MOVENTO 760 series is a 40kg class option with soft close and full extension. This slide offers tool-free tilt adjustment, height adjustment, and side-to-side adjustment for easy alignment!

Includes Left and Right Standard Locking Device with Side Adjustment.

  • Full extension concealed runners with BLUMOTION soft close
  • Zinc-coated steel
  • Concealed roller carriage with permanently lubricated synthetic rollers
  • Designed for maximum 12mm & 15mm (1/2" & 5/8") drawer material thickness

European screws can be found here

Technical Data
  • Mounting Style: Undermount
  • Product Finish: Zinc
  • Extension: Full Extension
  • Closing Type: Soft Close
  • Load Rating: 40kg
  • Application: Frame or Frameless
  • Max. Drawer Box Thickness: 16mm
  • Material: Steel
  • Weight: 3kg (6.6lb)
Options

350mm (14") Slides

  • 760H3500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

400mm (16") Slides

  • 760H4000S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

450mm (18") Slides

  • 760H4500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

500mm (20") Slides

  • 760H5000S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device

550mm (22") Slides

  • 760H5500S - Drawer Slides
  • T51.7601R - Right Locking Device
  • T51.7601L - Left Locking Device
