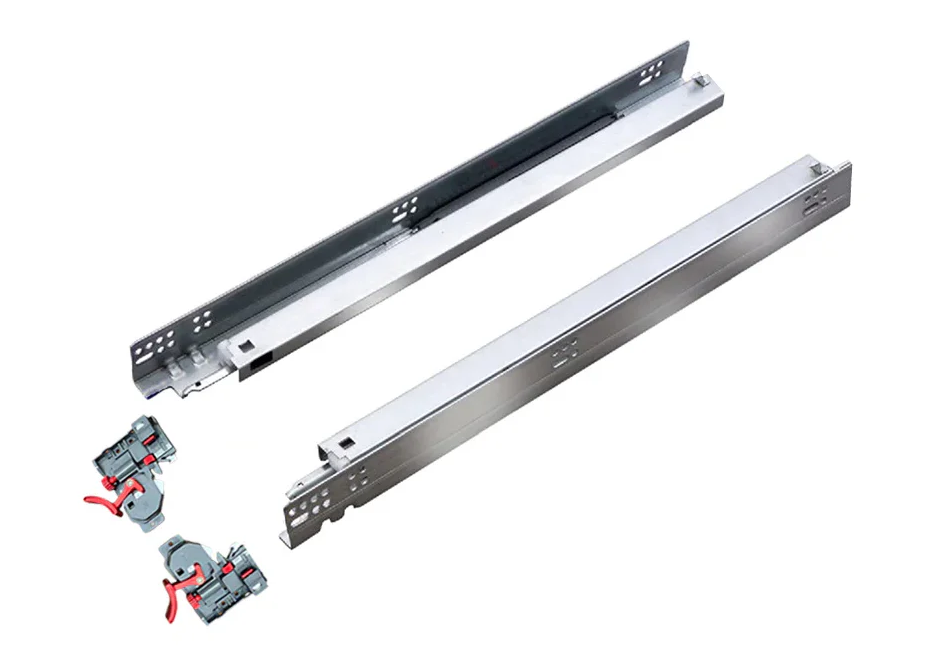

PRO560 - Undermount Drawer Slides

PRO560 - Undermount Drawer Slides

Cost effective heavy-duty undermount slides with increased load capacity and stability - built for larger drawers and demanding applications.

Mounting Style: Undermount
Extension Type: Full Extension
Closing Mechanism: Soft Close
Load Capacity: 80 lbs

Option: 350mm (14")
$36.95 - $42.50
$36.95
$36.95 - $42.50
$36.95

Soft-Close Full Extension Undermount Drawer Slides

DS.PRO560B

The ultimate economical solution for undermount drawer slides. These full extension slides have an 80lb dynamic load rating. The rollers allow for smooth, quiet operation & reduces deflection when extended

Includes Left and Right Standard Locking Device with Side Adjustment.

  • ANSI, BIFMA, BHMA approved; tested to over 50,000 cycles
  • Soft-close mechanism: activated at 2 inches
  • 6 way adjustment
  • Hole pattern - 32mm

European screws can be found here

Specifications
  • Manufacturer: Wurth
  • Max Drawer Side Thickness: 16mm (5/8")
  • Drawer Height Adjustment: 0-3mm
  • Load Rating: 80lb dynamic
Soft Close Drawer Slide pro 500

Looking for the 533mm (21") length?

Please note if you are trying to replace the 533mm (21") slide - the 22" length does NOT work and you'll need to use the 500mm (20")

Pro500 Drawer Slide opening

Top pick for value and quality!

New front roller allows for smooth, quiet operation and dramatically reduces deflection when drawer slide fully extended.

Opening up a Pro500 drawer slide

New soft-close drawer slide mechanism

The improved piston is larger and more robust, capable of handling even greater impact with a fully loaded drawer.

Soft Close Pro500 Slide
EASY ASSEMBLY AND INSTALLATION - DS Pro Series gives you an extensive range of options and yet assembly is always the same.
CLICK FOR INSTALLATION INSTRUCTIONS

Frequently Asked Questions about the DS Pro 500/560 Series Drawer Slides

What is the difference between the DS Pro 500 and the DS Pro 560 Series?

The only difference between the DS Pro 500 Series and DS Pro 560 Series is the locking mechanism on the DS Pro 560 has been udgraded and has more adjustability options. Both 500 & 560 can be inter-changed and are installed with the same hole pattern and installation methods.

What are DS Pro 500 / 560 Series undermount soft-close drawer slides?

The DS Pro 500/560 Series undermount soft-close drawer slides are high-quality, durable slides designed for full-extension drawers. They are mounted beneath the drawer, offering a sleek, concealed appearance, while the soft-close mechanism ensures a smooth, silent closing action every time.

How do DS Pro 500 / 560 Series undermount soft-close drawer slides work?

The DS Pro 500/560 Series slides feature an integrated soft-close damper that gradually slows the drawer's motion as it nears the closed position. This prevents slamming, providing a quiet and controlled closing experience. The undermount design ensures a clean and modern look, with all the hardware hidden from view.

What is the weight capacity of the DS Pro 500 / 560 Series undermount soft-close drawer slides?

The DS Pro 500/560 Series undermount soft-close drawer slides are designed to support a weight capacity of up to 80 lbs per pair, making them ideal for medium to heavy-duty drawers in both residential and commercial applications.

Are the DS Pro 500 / 560 Series undermount soft-close drawer slides adjustable?

Yes, the DS Pro 500/560 Series slides are fully adjustable, allowing you to fine-tune the alignment of the drawer and ensure smooth operation. The adjustability features also allow you to modify the soft-close mechanism, ensuring optimal performance and precise drawer movement.
