Festool - DF 500 R
Domino Joiner 500 RQ-Set US.
578544

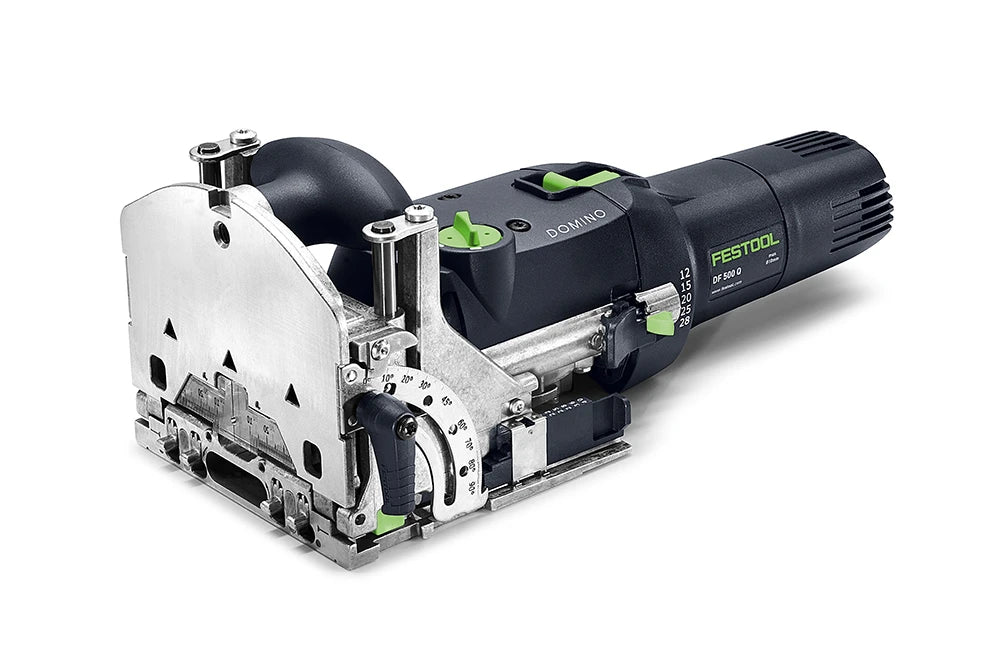

DF 500 R = The latest generation of the renowned DF 500.

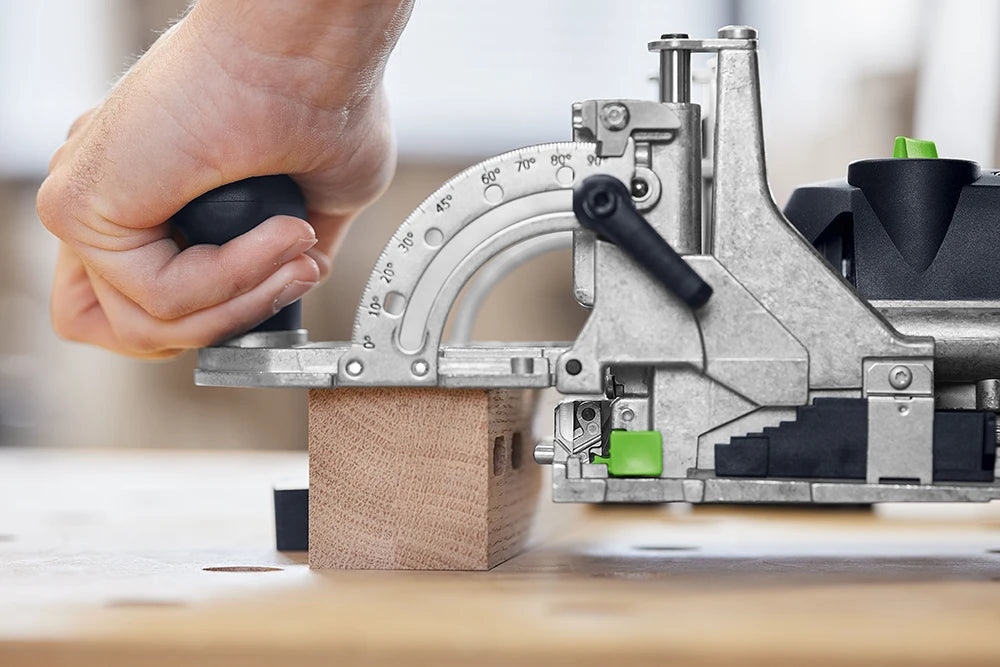

Upgraded fence with easy-to-read markings, a quick-release lever, and a solid double-column design. For fast, accurate setup, it includes four stop pins that pop in and fold away—no need to measure or mark.
Where precision meets power. Built to hold. Every wood joint has its strengths—and the DOMINO system brings them all together. The DOMINO joiner, paired with DOMINO Tenons, delivers strong, twist-proof connections with speed and accuracy. Clean, Precise Cuts: The pendulum cutting motion carves out elongated mortises that lock in tight and stay aligned. Stronger Joints: DOMINO Tenons combine the strength of mortise-and-tenon with the flexibility of biscuits—perfect for both fine furniture and heavy-duty builds. Built
for Any Job: Whether you're working indoors or out, on delicate trim or thick panels, DOMINO gives you the stability and versatility you need. From the first cut to final assembly, DOMINO helps you connect with confidence.
Strengths and Benefits
- Versatile: Tenons range from 4 x 20 mm to 10 x 50 mm and come in beech or weatherproof sipo—ready for indoor or outdoor builds.
- Flexible: DOMINO connectors and fittings let you build strong furniture that can be taken apart when needed.
- Stable: The oval-shaped DOMINO Tenon creates twist-proof, rock-solid joints that hold tight.
- Dialed In: Routing depths are preset to match tenon sizes and panel thickness—no guesswork needed.
- System Ready: Every accessory is designed to work seamlessly with the full DOMINO lineup.
- Quick & Easy: Built-in indexing pins make repeat tenon placement fast and foolproof.

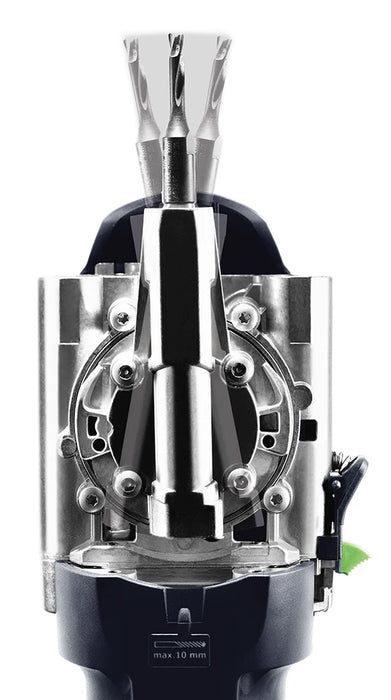

- Precise: The unique pendulum milling action delivers smooth, accurate mortises with minimal effort.

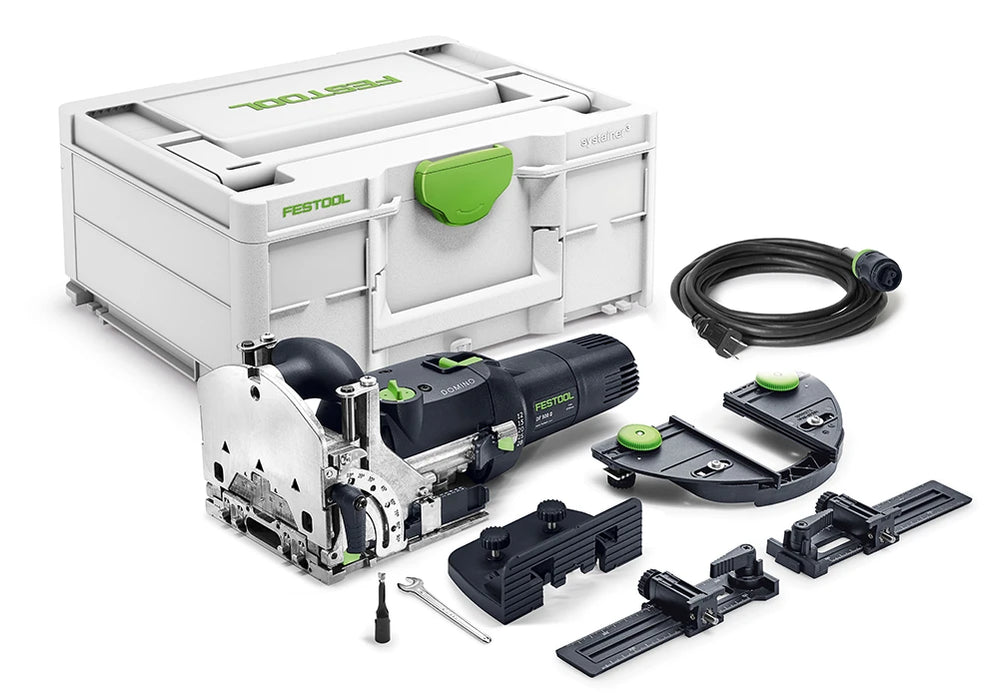

Includes
- 5mm cutter
- Support Bracket
- Trim Stop
- Cross Stop
- Wrench
- in Sys³ M 187
Technical Data
- Power consumption: 420 watt
- Idle Engine Speed: 25000 RPM
- Depth stop options: 12, 15, 20, 25, 28mm
- Mitre routing: 0-90°
- Domino slot cutter diameters: 4, 5, 6, 8, 10mm
- Max plunge depth: 28mm
- Height adjustment: 5-30mm
- Dust extraction diameter: 27mm
- Power cable length: 4m
- Weight: 3.6kg
